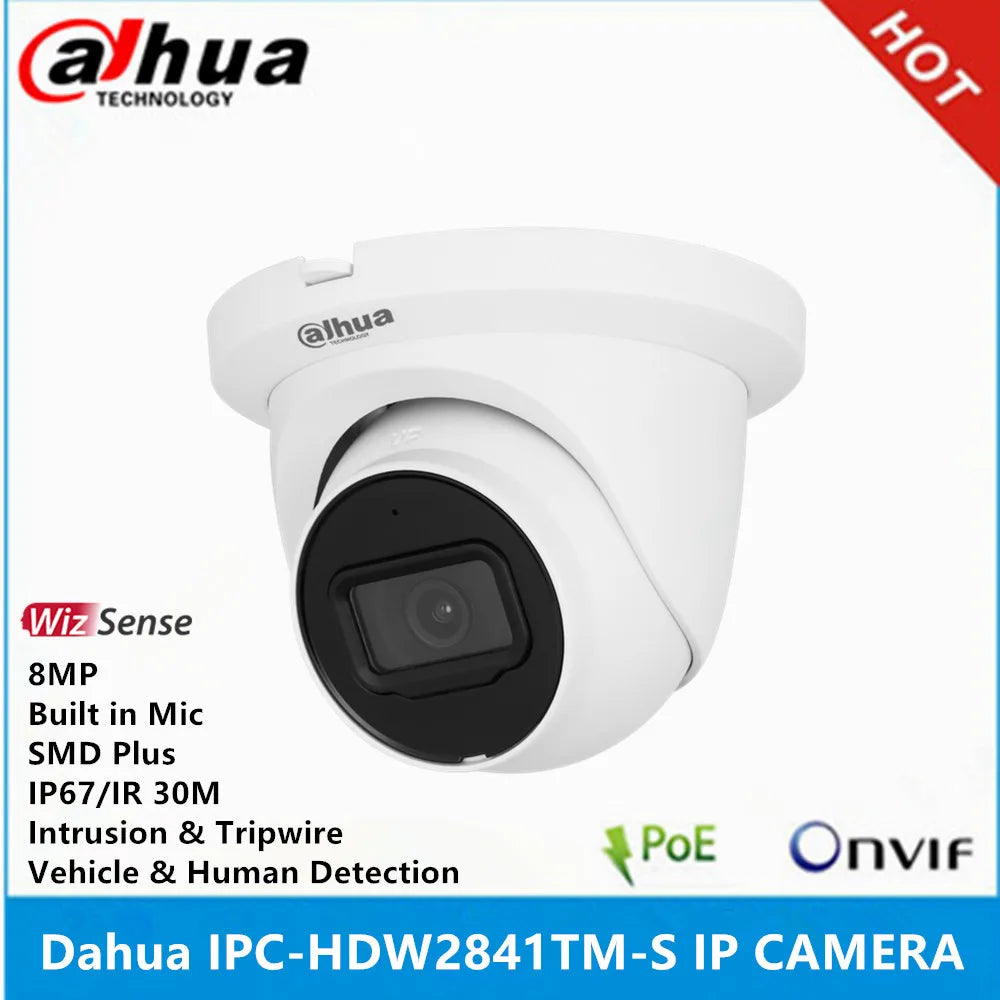

Dahua IPC-HDW2841TM-S 8MP POE Built-in Mic IR 30M IP67 SMD Plus Eyeball AI WizSense IP Camera replace IPC-HDW2831TM-AS

£140.00 GBP

~~£92.29 GBP~~ £140.00 GBP

Sale Sold out

Taxes included.

Focus 3.6mm 2.8mm

Quantity

SPECIFICATIONS

AI Functions: Human Detection

Alarm Action: telefon Alarm,Email Photo

Audio Output: None

Brand Name: Dahua

Certification: CE,FCC,UL

Choice: yes

Connectivity: IP/Network Wired

Dimensions (L x W x D)(mm): 99.1 x 121.9 mm

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP67

IR Distance(m): Max 30m

Installation: Normal

Lens (mm): 3.6mm,2.8mm

Megapixels: 8MP

Model Number: IPC-HDW2841TM-S

Origin: Mainland China

Power Consumption(W): 5.4W

Power Supply: With POE

Power Supply(V): DC12V, PoE (802.3af)

Sensor: CMOS

Shell Material: Metal

Smart home platform: None

Special Features: Waterproof / Weatherproof

Storage: None

Style: Dome Camera

Supported Mobile Systems: Windows Mobile,Android,IOS,Symbian

Supported Operating Systems: Windows XP,Windows vista,Windows 7,Windows 8,Windows 10,Windows 2000,Windows 2008,Windows 2003

TF Card: None

Video Compression Format: H.264,H.265

is_customized: No

semi_Choice: yes

IPC-HDW2841TM-S

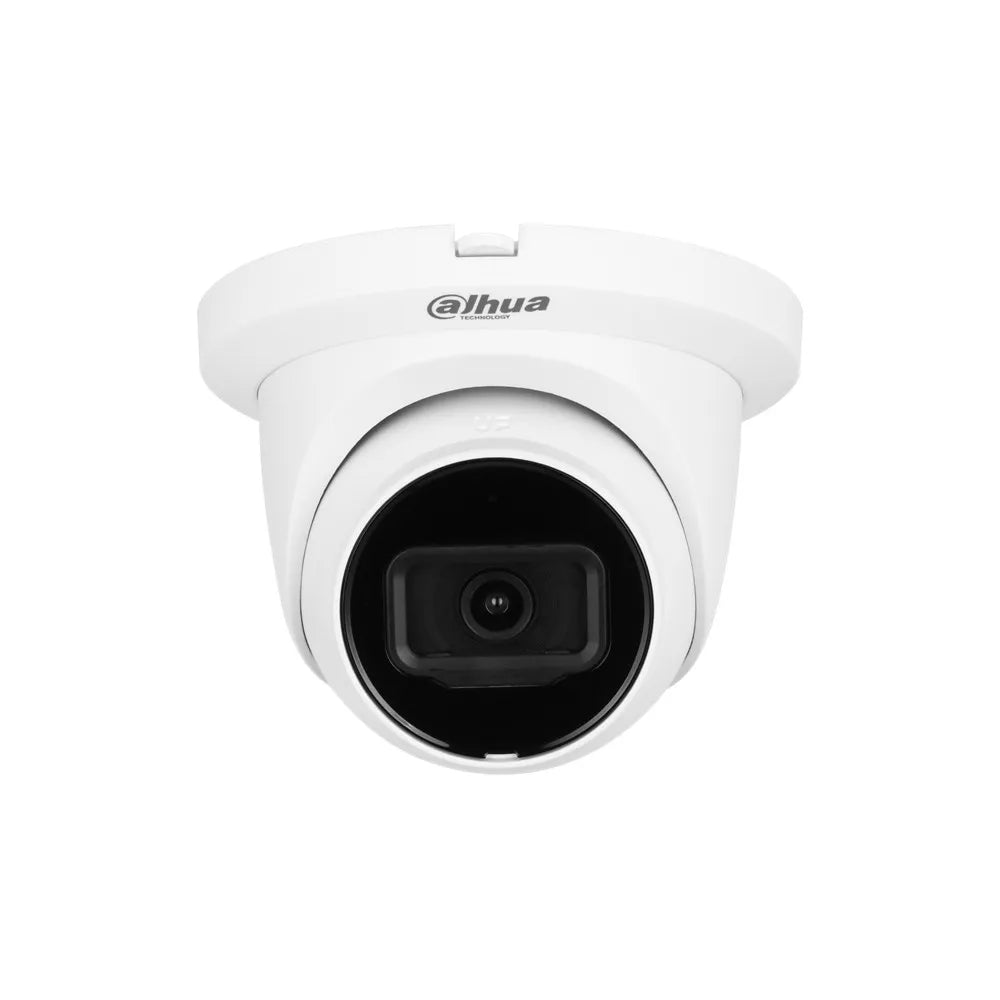

8MP IR Fixed-focal Eyeball WizSense Network Camera

> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in IR LED, and the max. illumination distance is 30 m.

> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Supports max. 256 G Micro SD card; built in MIC.

> 12 VDC/PoE power supply.

> IP67 protection.

> SMD Plus.

Camera

Image Sensor

1/2.7" CMOS

Max. Resolution

3840 (H) × 2160 (V)

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.009 lux@F2.0 (Color, 30 IRE)
0.0009 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>56 dB

Illumination Distance

30 m (98.43 ft) (IR)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

1 (IR LED)

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 106°; V: 56°; D: 125°
3.6 mm: H: 88°; V: 46°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 1.3 m (4.27 ft)
3.6 mm: 1.9 m (6.23 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

88.0 m

(288.71 ft)

35.2 m

(115.49 ft)

17.6 m

(57.74 ft)

8.8 m

(28.87 ft)

3.6 mm

106.7 m

(350.07 ft)

42.7 m

(140.09 ft)

21.3 m

(69.88 ft)

10.7 m

(35.10 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Intelligence

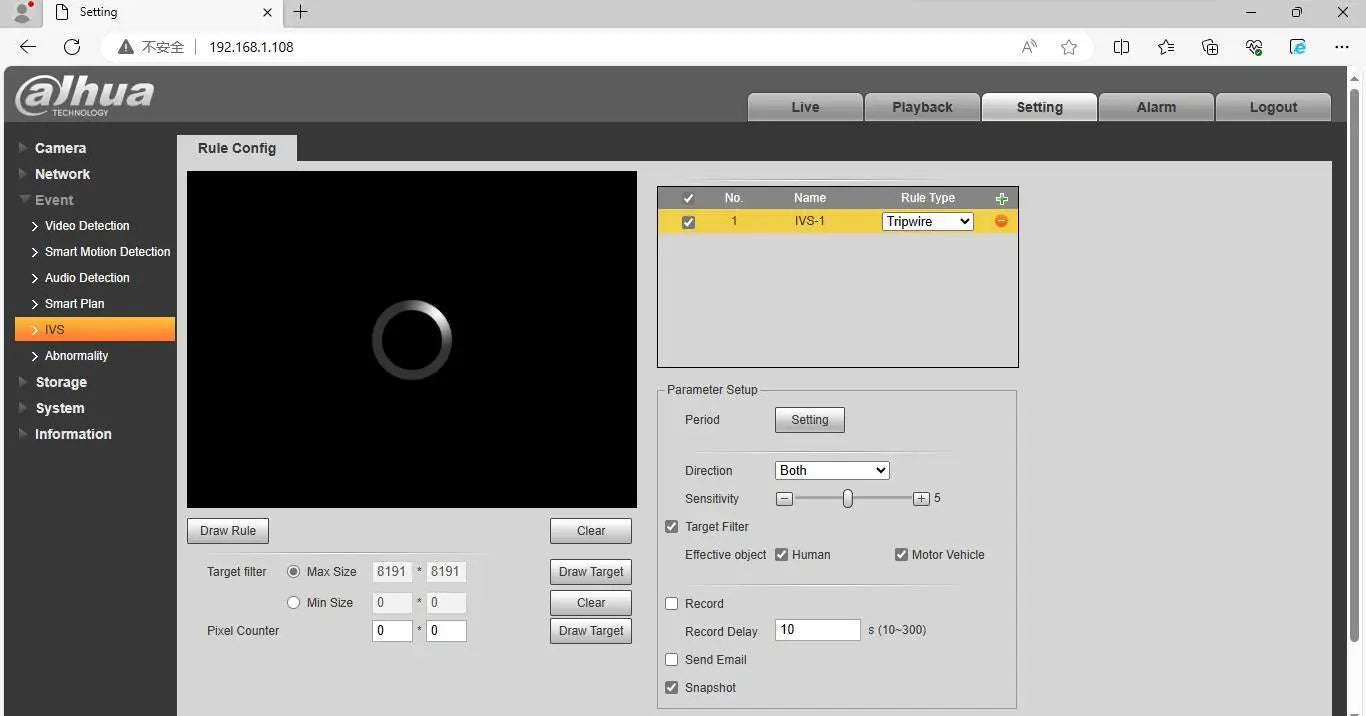

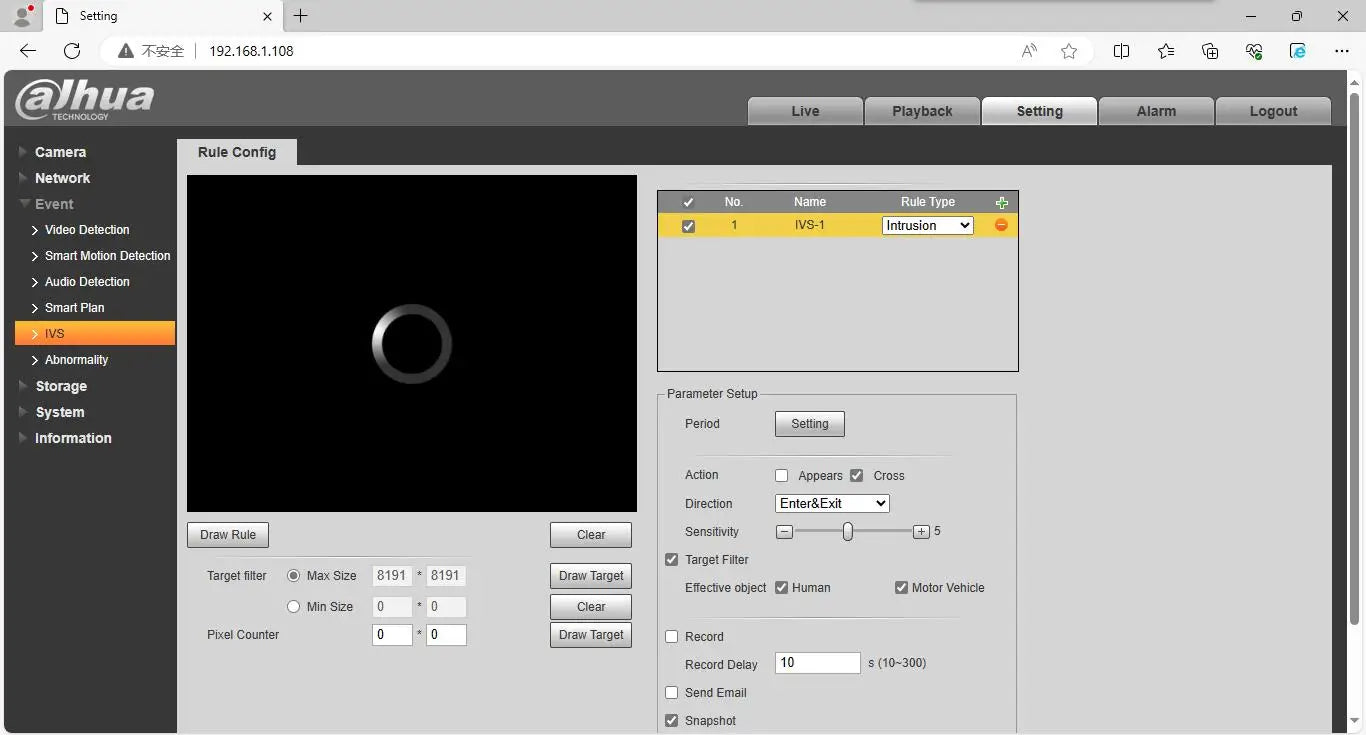

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

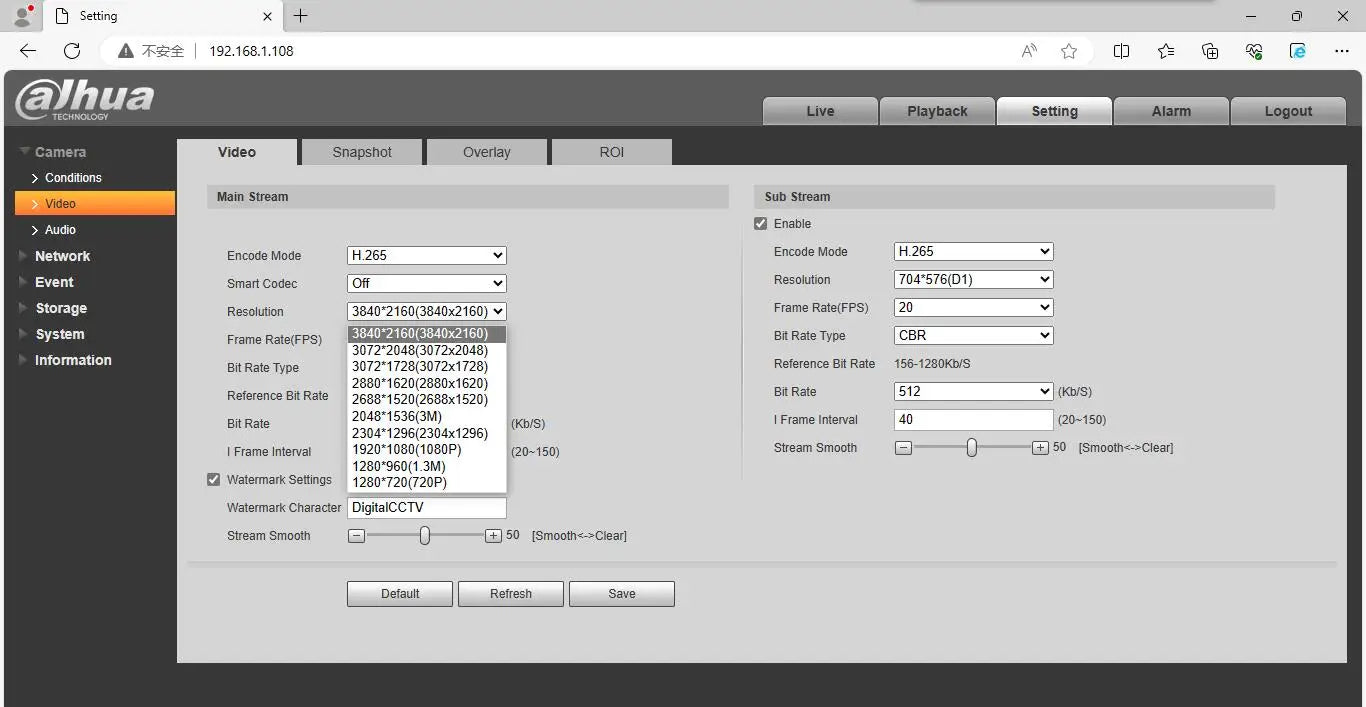

Resolution

3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

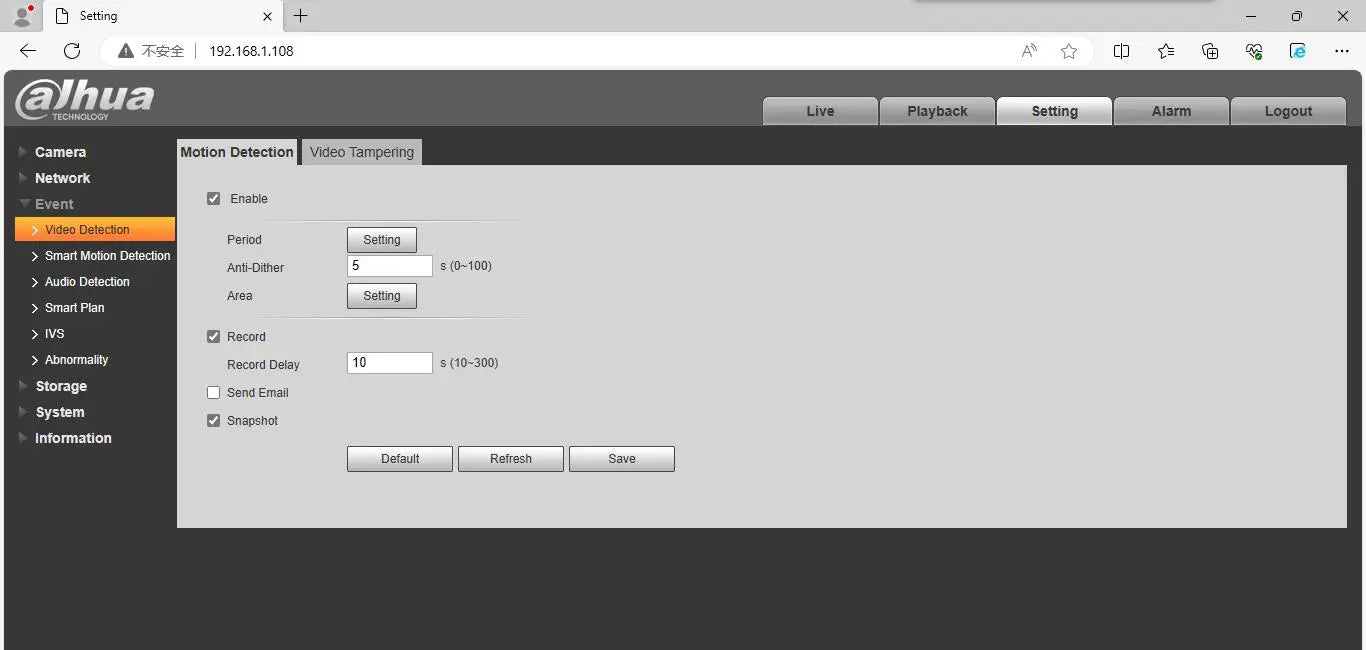

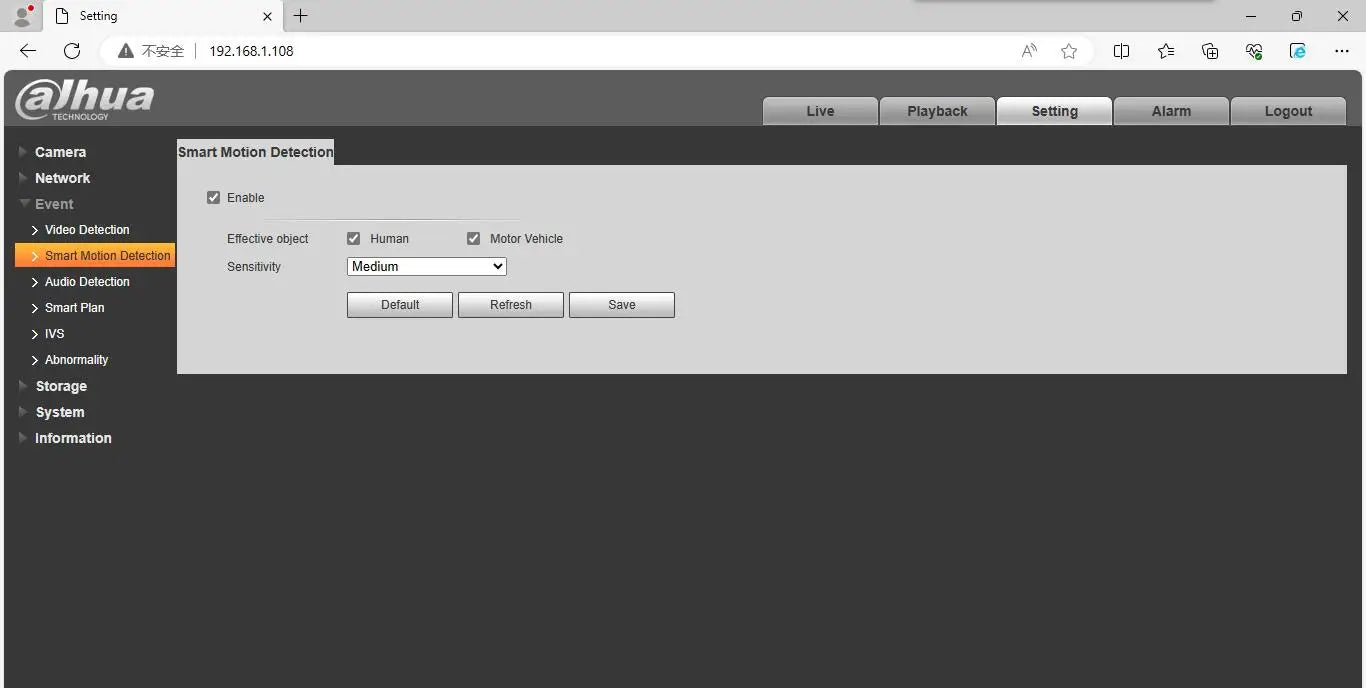

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

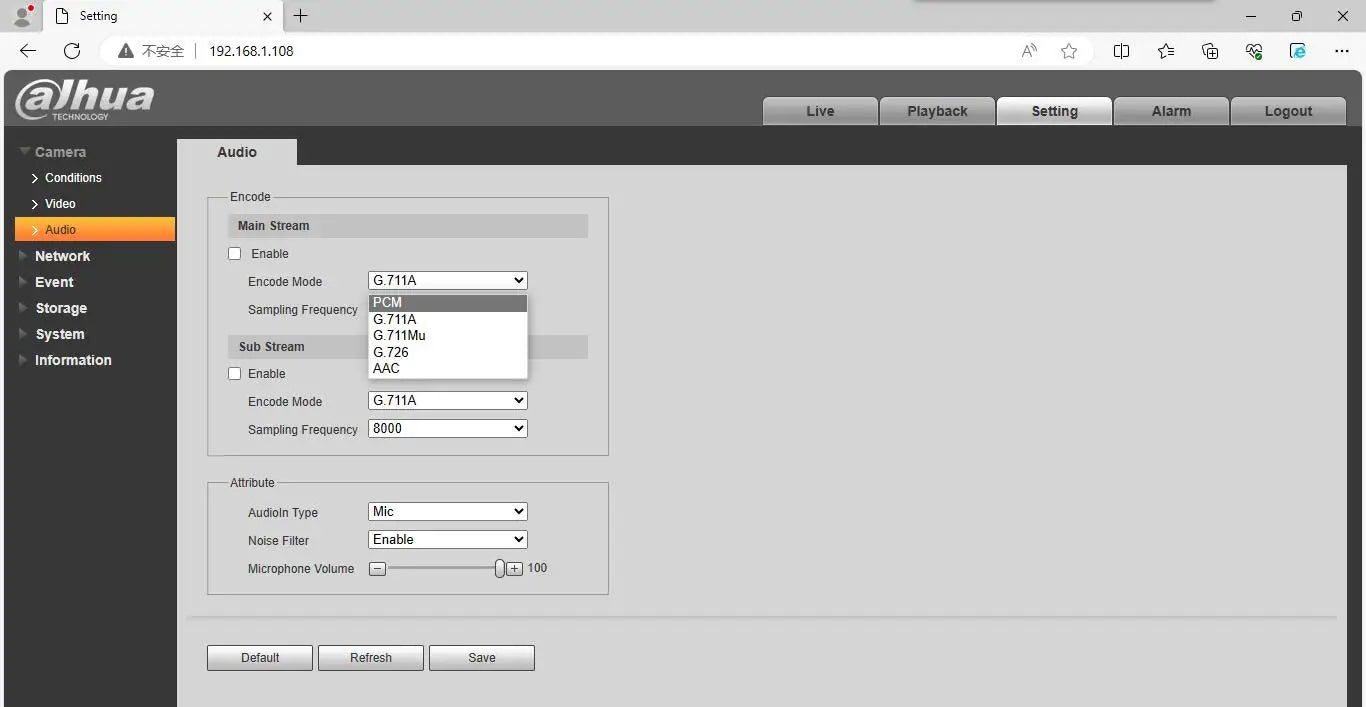

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100 Base-T)

SDK and API

Yes

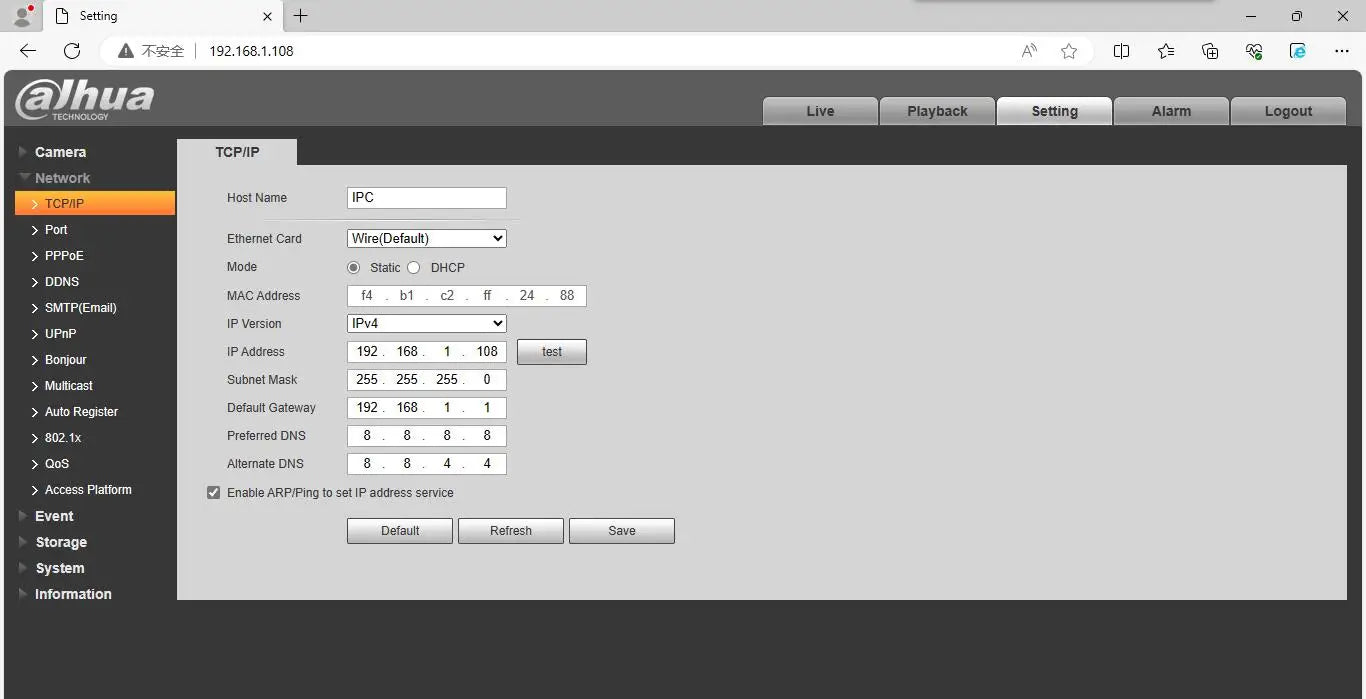

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour

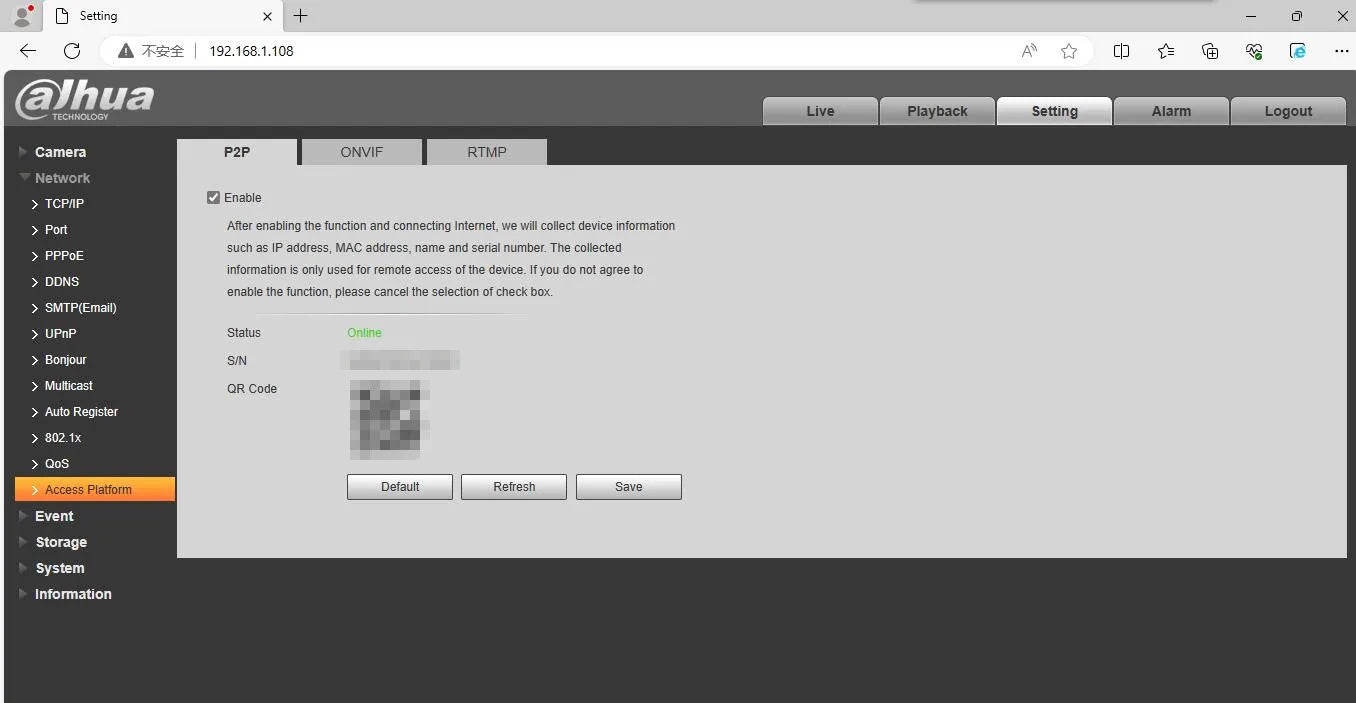

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone

User/Host

20 (Total bandwidth: 48 M)

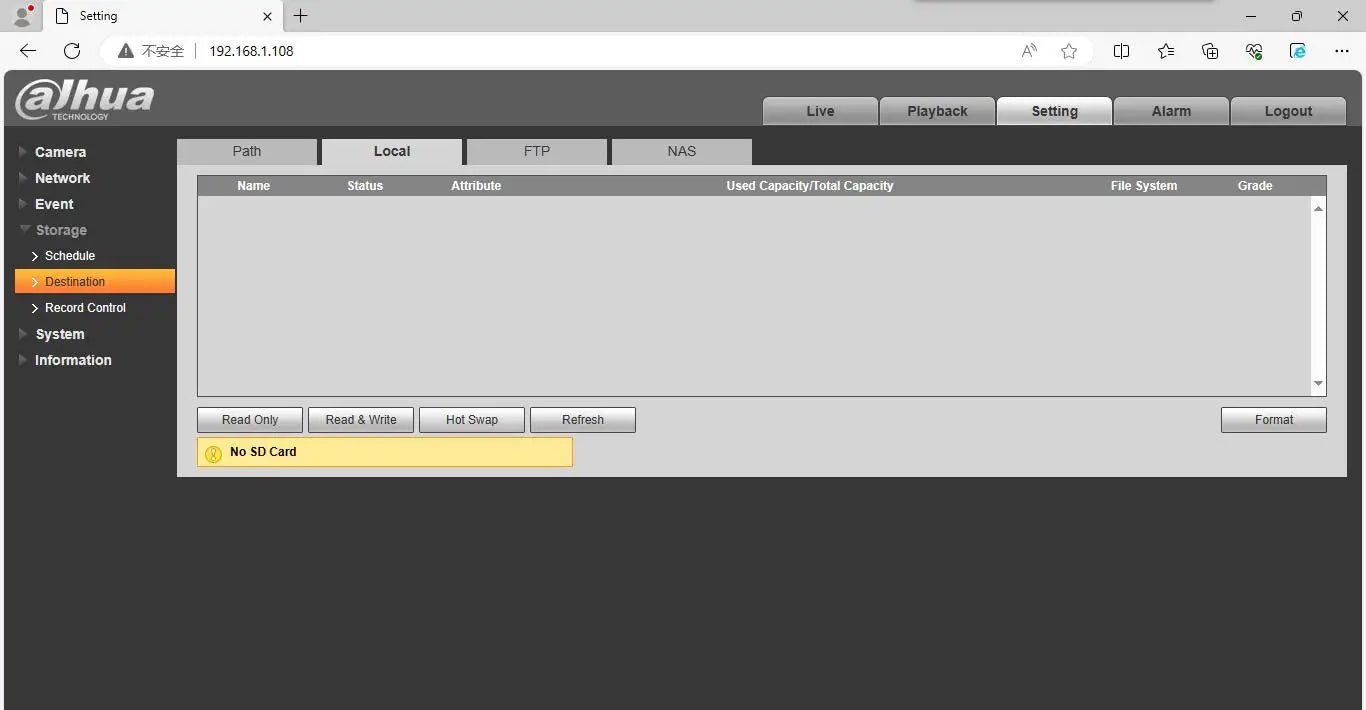

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; Trusted execution; Digest; Security logs; WSSE; Account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; Trusted upgrade; Trusted boot; Firmware encryption; Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12 VDC/PoE (802.3af)

Power Consumption

Basic: 2.7 W (12 VDC); 3.4 W (PoE)
Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 4.5 W (12 VDC); 5.4 W (PoE)
